In prior posts I've dealt with Forms Personalizations, and played with email e.g. via BI (XML) Publisher Bursting. In this post we'll come up with a simple Forms Personalization to ensure that data entry of email addresses results in well-formed email addresses. We'll use regular expressions: an underutilized feature in Oracle since 10g. Initially we'll look at the Remittance Email address on Supplier Sites. But the implementation will allow easy re-use for other email address fields in the EBS by storing the regular expression in a Profile Option.
The Regular Expression
Lets take a look at the regular expression I'll use for email address validation. This regular expression is a consolidation from a variety of sources, considers IPv4 and IPv6 addressing, and includes specific formatting to get around an Oracle Regex bug. Note it isn't the "full official" regex for email address validation - I wanted a one-liner! What does the regular expression below mean? Basically allow a bunch of characters before the @ and a bunch of characters after the @ considering IPv4 or IPv6 addressing. If anyone has any suggestions/issues/changes, please feel free to comment!
Update 27-JUL-2010: Changed regex to allow multiple hypens as it was only accepting one hyphen in hostname.
Update 09-MAY-2012: Changed regex to disallow leading/trailing periods in username and disallow leading periods in server/domain.
^[-a-zA-Z0-9_\+\^!#\$%&*+\/\=\?\`\|\{\}~\']+(\.([-a-zA-Z0-9_\+\^!#\$%&*+\/\=\?\`\|\{\}~\'])+)*@((([0-9a-zA-Z]*[-\w]*[0-9a-zA-Z])+\.)+[a-zA-Z]{2,9})|(\[([0-9]{1,3}(\.[0-9]{1,3}){3})|([0-9a-fA-F]{1,4}(\:[0-9a-fA-F]{1,4}){7})\])$Profile Option
We'll store the regular express as a profile option. This allows a single source of truth for our email address validation logic. We could equally put it in a PL/SQL package, but then updates would require coding ... and no-one wants to code these days ;-)
Navigate to Application Developer, ProfileName: XXV8_REGEX_EMAIL
Application: Virtuate (or your chosen modifications application)
User Profile Option Name: Virtuate Regular Expression: Email Address
Set to Site level visible/updatable only
Save

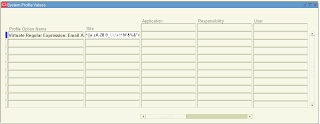

Navigate to System Administrator, Profile, System
Query "Virtuate Regular Expression: Email Address"
Set site level value to the regular expression above
Save
Forms Personalization
Okay, moving onto the good stuff. Now we'll setup the Forms Personalization to validate the Remittance Email address on the Supplier Sites, Payment tab.
Navigate to Payables Manager, Suppliers, EntryQuery up an existing supplier and navigate to Sites
Click Help, Diagnostics, Custom Code, Personalization from the menu.
Enter the APPS password

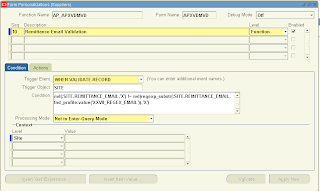

Enter the Forms Personalization Header and Condition
Seq: 10
Description: Remittance Email Validation
Trigger Event: WHEN-VALIDATE-RECORD
Trigger Object: SITE
Condition: nvl(:SITE.REMITTANCE_EMAIL,'X') != nvl(regexp_substr(:SITE.REMITTANCE_EMAIL,fnd_profile.value('XXV8_REGEX_EMAIL')),'X')
Save
Enter the Forms Personalization Action Seq: 10
Type: Message
Description: Remittance Email Invalid
Message Type: Error
Message Text: Remittance Email is invalid. Please enter a well-formed email address. Ensure there are no spaces and check that periods are in the correct position. For example: firstname.lastname@gmail.com
Test it out!
Enter junk in the Remittance Email address on the Payment tab and save.
Code Reuse
To implement the same email address validation on other forms, run through the Forms Personalization steps above, identifying the new block and field, replacing SITE.REMITTANCE_EMAIL as required, and update the Error Message action message description / text with the field name.
If you identify a problem with the regular expression, you have one place to change it and it flows through to all the places you implemented the forms personalization the next time your Users log in!
Requirements/Restrictions
- Regular Expression functionality (regexp_substr) requires that you are on Oracle Database 10g or higher.
- The solution presented doesn't test email account validity via SMTP query for address verification.
References
- Regular-Expressions.info - How to Find or Validate an Email Address
- Regular Expressions in Oracle Database 10g on OTN
- Using Regular Expressions With Oracle Database 10g Documentation
- Thanks to email address checks in Drupal, Wordpress and various other Oracle specific sources.
